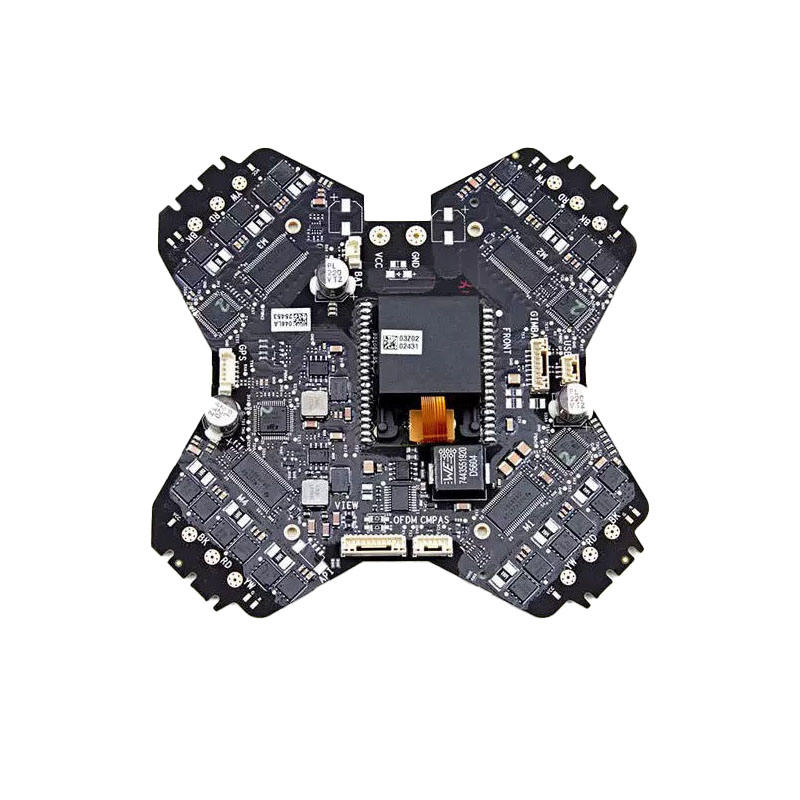

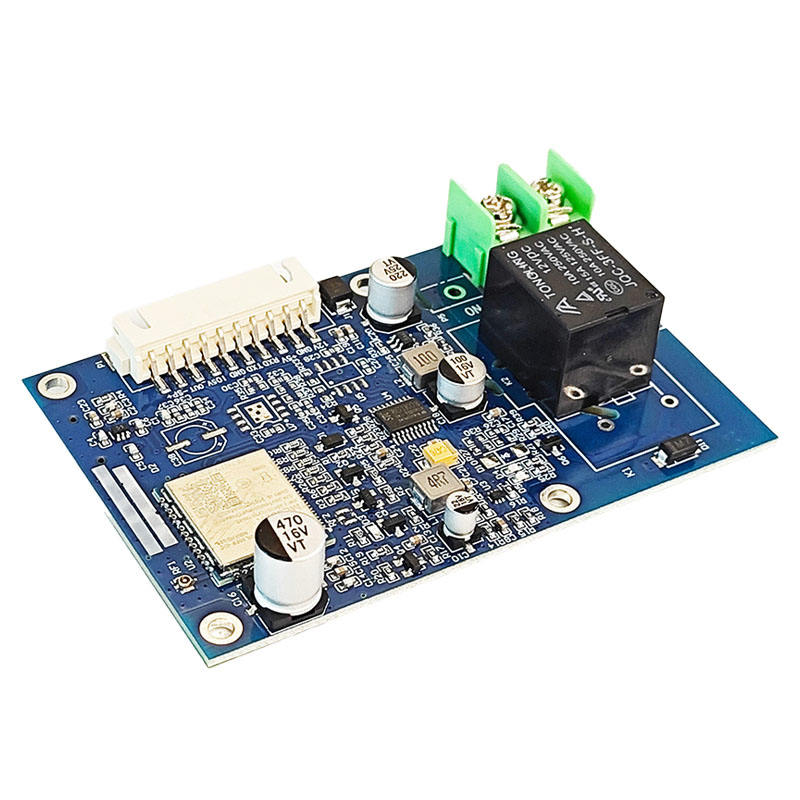

What Is an HDI PCBA Component?

An HDI PCBA (High-Density Interconnect Printed Circuit Board Assembly) component is a highly compacted, populated circuit board utilizing advanced microvia technologies, finer lines, and high-performance substrates to achieve ultra-high component density and superior signal integrity in miniaturized electronics.

What Design Parameters Define a 2026-Spec HDI PCBA?

The Core Metrics

Modern High-Density Interconnect assemblies in 2026 have moved beyond standard microvia architectures. To ensure reliable performance in 112G/224G PAM4 hardware and high-computing AI nodes, manufacturing requires strict adherence to tight physical constraints.

Here is the technical baseline for an advanced HDI PCBA:

Advanced Material Matrix

To prevent signal degradation at extremely high frequencies, standard FR-4 is insufficient. At Shenzhen Hongda Circuit Technology Co., Ltd., we regularly employ ultra-low loss (Ultra-Low Df) laminates paired with ultra-smooth copper foil:

• Substrates: Panasonic Megtron 6 / 7 / 8, Doosan DS-7409DV, or Isola Tachyon 100G.

• Dissipation Factor (Df): less than or equal to 0.0012 at 28 GHz.

• Dielectric Constant (Dc): 3.3 to 3.6, stabilized across a -40C to +125C thermal envelope.

• Copper Profile: HVLP (Hyper Very Low Profile) or RTF (Reverse Treated Foil) with surface roughness (Rz) less than or equal to 1.0 um to mitigate high-frequency skin effect losses.

What Are the Toughest Manufacturing Pain Points in Modern HDI Fabrication?

Microvia Reliability and Laser Drilling Drifts

When executing Every Layer Interconnect (ELIC) stacking, laser ablation positional accuracy is critical. A minute deviation in the CO2 or UV laser alignment causes catastrophic alignment failures.

The Manufacturing Reality: "If your laser registration target tolerance drifts past plus/minus 15 um, you will experience microvia land pad breakout. This creates latent cracks during post-reflow thermal cycling," notes our Principal Interconnect Engineer. "Furthermore, if the laser dwell time is off by even a few milliseconds, it leaves microscopic resin residues at the base of the target pad, obstructing the sub-surface copper connection."

Desmear and Copper Plating Voids

Cleaning out organic resin debris from a 50 um blind via demands precise chemical management. If the desmear bath lacks aggressive ultrasonic agitation or optimal permanganate concentration, thin resin films remain. During the subsequent horizontal Acid Copper Plating process, these residues cause incomplete plating, creating tiny voids inside the microvia. Under operating stresses, these voids undergo localized thermal expansion, fracturing the via wall and creating intermittent open circuits that defy standard automated test protocols.

In Which High-Performance Applications Are These Components Deployed?

[Edge AI Computing Node]
       |
       |---► 0.35mm Pitch BGA (1000+ Pins)
       |---► 14-Layer Any-Layer HDI Stackup
       |---► High Thermal Dissipation (2.5 W/m.K Embedded Copper)

Next-Generation Edge AI Computing Nodes

In localized AI inference hardware, massive computing arrays must sit immediately adjacent to high-speed LPDDR5X memory stacks to reduce latency. This layout leaves zero tolerance for traditional routing footprints.

• The Scenario: A 14-layer Any-Layer HDI configuration hosting a 1000+ pin BGA with a 0.35 mm pitch. Signal lines must track between microvias utilizing 25 um line widths.

• The Solution: By replacing standard mechanical vias with stacked blind and buried microvias (Layers 1-2, 2-3, 3-4), the design achieves an estimated 45% reduction in layout area while suppressing parasitic capacitance, ensuring pristine signal transitions across high-frequency buses.

High-Frequency 5G/6G mmWave Transceiver Assemblies

Operating at millimeter-wave frequencies demands minimal trace lengths to prevent radiated signal attenuation.

• The Scenario: Antenna arrays embedded directly into the PCBA surface structure.

• The Solution: Implementing microvia-in-pad technology allows engineers to place bypass capacitors directly beneath the component pads. This configuration eliminates parasitic inductance caused by long trace breakouts, stabilizing power distribution networks (PDN) during high-frequency pulse transmissions.

What Original Engineering Practices Ensure High Assembly Yields?

Optimizing the Copper Filling Process (VCP)

To prevent voids when stacking microvias directly on top of each other, the blind vias must be completely filled with copper using Vertical Continuous Plating (VCP) systems.

Our manufacturing lines apply a highly controlled, non-uniform organic additive package to the copper bath:

1. Accelerators gather inside the microvia base to force rapid bottom-up copper growth.

2. Suppressors adsorb onto the flat surface areas to inhibit over-plating on the surface traces.

This exact chemical balance achieves a target dimple depth of less than or equal to 5 um, providing a perfectly flat surface for subsequent layer lamination and component placement.

Dynamic Solder Paste Stencil Modification

Assembling 03015 discrete passives alongside ultra-fine pitch BGAs requires careful solder volume management. Using a uniform stencil thickness often leads to either starvation on micro-pads or solder bridging on denser components.

To resolve this, Shenzhen Hongda Circuit Technology Co., Ltd. implements stepped laser-cut stencils (e.g., a 100 um base thickness with selectively electroformed 80 um step-down zones for fine-pitch BGAs). Combined with a nanocoating on the stencil walls, this modification achieves a calculated area ratio greater than 0.65, ensuring predictable, consistent release of solder paste across mixed-component topologies.

Frequently Asked Questions

1. How does Any-Layer HDI differ from standard multi-layer PCB design?

Standard multi-layer PCBs rely on mechanically drilled through-holes that penetrate all layers, consuming valuable routing channels across the entire stackup. Any-Layer HDI utilizes sequential laser ablation to establish micro-vias between any given layer pairs (e.g., Layer 1 to Layer 2, Layer 2 to Layer 3). This setup allows trace routing to occur freely on inner layers directly above or beneath interconnection points, maximizing routing density and cutting board size by up to 40-50%.

2. Why is a dimple depth of 5 um or less critical for microvia-in-pad applications?

If a microvia's copper-fill dimple exceeds 5 um, it acts as a micro-reservoir that traps air pockets when solder paste is printed over the pad. During reflow soldering, this trapped air expands rapidly, creating large solder voids inside the joint or causing "tombstoning" on ultra-small passive components like 0201 or 03015 packages. Keeping the dimple under 5 um ensures a flat surface for stable component placement and reliable joints.

3. How does Shenzhen Hongda Circuit Technology Co., Ltd. control impedance mismatch in HDI PCBAs at 28 GHz+?

We mitigate impedance variations by maintaining a tight plus/minus 8% tolerance on trace width through automated optical inspection (AOI) feedback loops and dry-film etching adjustments. Additionally, we control dielectric thickness variances within plus/minus 5 um across the panel using automated vacuum lamination cycles and high-flow, low-resin-flow bonding matrices.

4. What causes microvia corner cracking, and how can it be prevented?

Microvia corner cracking usually occurs due to CTE (Coefficient of Thermal Expansion) mismatches along the Z-axis between the copper plating (17 ppm/C) and the surrounding resin matrix (50-60 ppm/C). During reflow, the resin expands faster than the copper, straining the microvia's corner join. We prevent this by maintaining an optimal plating thickness of 15-20 um in the via wall and utilizing high-Tg (greater than 170C), low-CTE materials.

5. Why is a laser-step stencil required for assembling advanced HDI boards?

HDI boards blend ultra-dense components (like 0.35 mm pitch BGAs) with larger, high-power components. Standard stencils cannot deliver the small solder amounts needed for fine pitches without causing shorts, while simultaneously providing enough paste for larger pads. A stepped stencil varies thickness across the same board (e.g., reducing thickness from 100 um to 80 um for fine-pitch areas), ensuring precise solder deposition for every component type.
