What Drives the Ultimate Yield in High-Precision Multilayer PCBA Assembly?

Achieving maximum yield in high-precision multilayer PCBA assembly requires strict control over volumetric solder paste deposition (+/-10%), precise component placement accuracy (+/-15 microns), and a dynamic thermal profile tailored to ultra-dense substrates. For advanced electronics in 2026, Shenzhen Hongda Circuit Technology Co., Ltd. addresses these demands by combining state-of-the-art manufacturing metrics with rigorous, automated process controls.

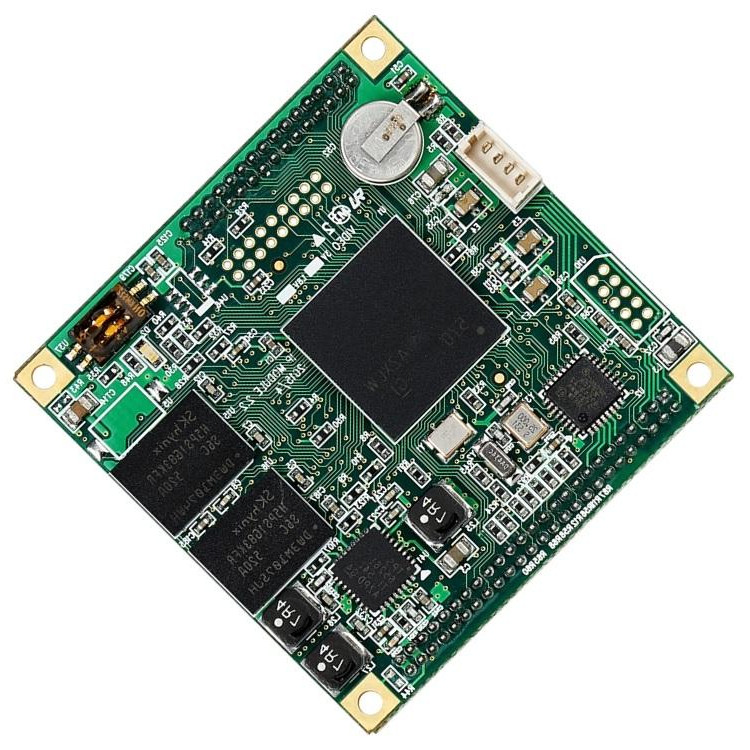

What 2026 PCB Manufacturing Technologies Enable High-Precision Multilayer Production?

The foundation of high-precision assembly relies on advanced substrate manufacturing that can handle hyper-dense routing without signal or structural degradation.

At Shenzhen Hongda Circuit Technology Co., Ltd., we have integrated several 2026-generation technologies into our daily production matrix to meet these requirements:

• Sub-25 Micron Ultra-Fine Line Routing: Utilizing Modified Semi-Additive Processes (mSAP), we achieve line width and spacing tolerances down to 20 microns with a strict variance of +/-2 microns. This precision prevents impedance mismatches in high-frequency layers.

• Any-Layer High-Density Interconnect (HDI) with Low-Loss Substrates: We deploy multi-stack copper-filled microvias (Aspect Ratio 1:1, diameter 60 microns) across high-layer-count configurations (up to 32 layers). These are laminated using advanced Ultra-Low-Loss (ULL) materials like Panasonic Megtron 8 and Tachyon 100G to support 112G/224G PAM4 signaling environments.

• Embedded Capacitors and Advanced Material Integration: To optimize power integrity in artificial intelligence server architectures, we embed planar capacitance materials directly within the internal layer stackup, reducing loop inductance to near-zero levels.

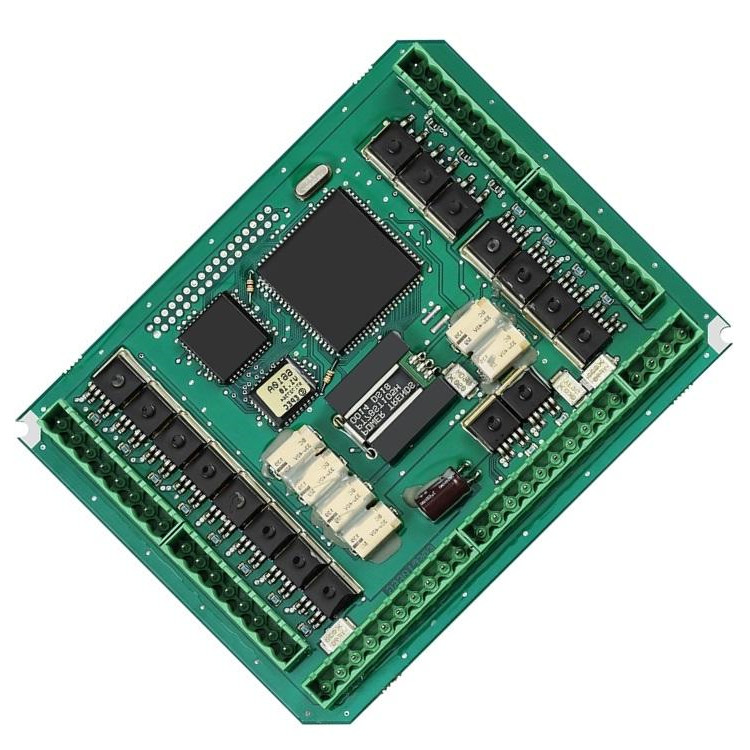

What Assembly Bottlenecks Threaten High-Density, Multilayer Hardware Projects?

The primary manufacturing pain points stem from the compounding thermal and physical stresses that occur when assembling ultra-fine-pitch components onto dense, complex substrates.

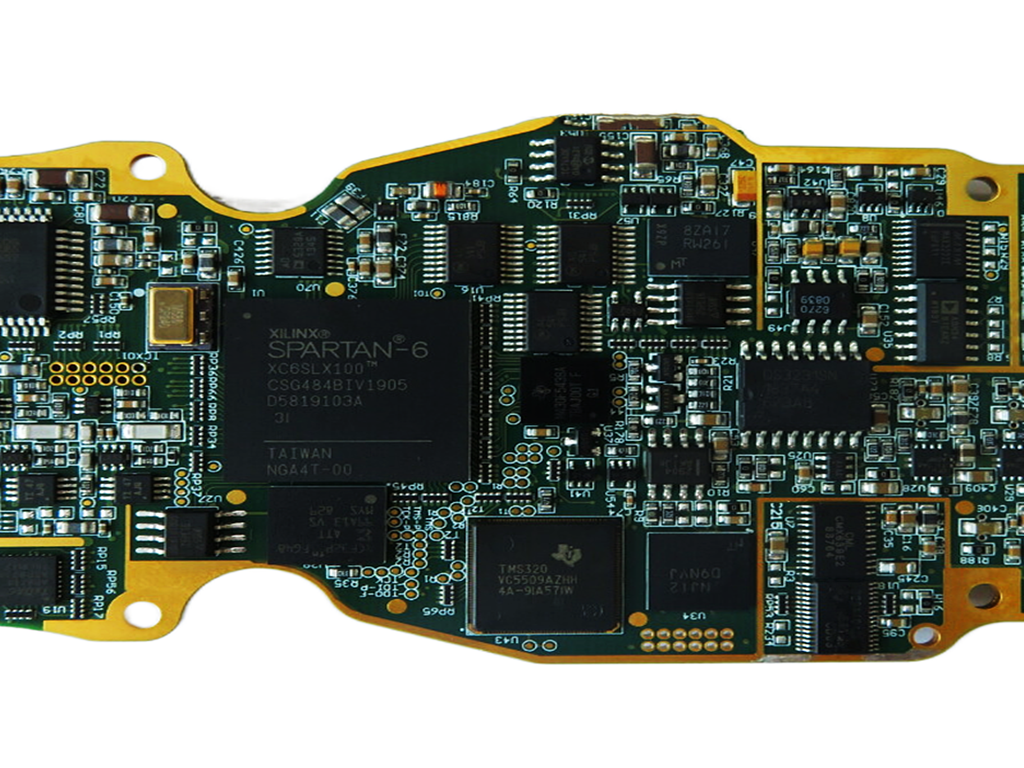

1. Voiding and Bridging in 0.3mm Pitch BGAs and CSPs

When assembling components like high-density FPGAs or AI processors, the margin for error is virtually non-existent. A major challenge is the occurrence of micro-voids inside solder balls during reflow. If the void area exceeds 10% of the total sphere volume, the joint's mechanical and electrical integrity degrades under thermal stress. Concurrently, insufficient solder paste volume control leads to bridging between adjacent pads spaced just 100 microns apart, causing immediate short circuits.

2. Inner-Layer Delamination and Pad Cratering during Reflow

Multilayer boards (especially those with 16 to 32 layers and heavy copper cores) act as massive thermal heat sinks. During lead-free reflow, the board is subjected to peak temperatures of 245°C to 250°C. If the CTE (Coefficient of Thermal Expansion) mismatch along the Z-axis is not carefully managed, or if any residual moisture remains trapped within the prepreg interfaces, the severe thermal shock can cause internal delamination or cause outer-layer pads to lift completely ("pad cratering").

How Does Scenario-Based Manufacturing Mitigate Risks in High-Stress Environments?

To understand how these engineering principles function under actual operating conditions, let us analyze a real-world scenario from our production floor.

Scenario: Upgrading an Enterprise AI Accelerator Card (28-Layer, 2.5mm Board Thickness)

A client approached us to assemble an AI accelerator card featuring a high-power ASIC flanked by multiple HBM3 (High Bandwidth Memory) modules. The board utilized a mixed-dielectric stackup with a power distribution network containing 3 oz heavy copper inner layers.

• The Challenge: The 3 oz inner copper layers absorbed heat rapidly, while the fragile 0.3mm pitch memory interfaces required minimal thermal exposure to avoid warp-induced open joints. Standard reflow profiles resulted in incomplete solder wetting on the heavy copper pads and warped the outer memory modules.

• The Solution: Shenzhen Hongda Circuit Technology Co., Ltd. designed a segmented, multi-zone nitrogen-purged (N2 < 50 ppm) reflow profile. We extended the soaking zone to 110 seconds at 170°C to 190°C, allowing the internal heavy copper layers to reach thermal equilibrium without overheating the surface-mount pads. The peak reflow temperature was capped strictly at 244°C for a dwell time of 55 seconds.

• The Result: Post-assembly 3D X-ray (AXI) and acoustic microscopy confirmed a 0% delamination rate and brought BGA voiding down to an exceptional < 4.5% across all 12,000 interconnect points.

What Original Engineering Practices Ensure Consistent Assembly Quality Control?

Expert Engineering Perspective:

"High-precision assembly cannot rely on post-reflow inspection to catch errors; it must be built directly into the process. In our high-layer-count lines, we treat solder paste printing as a dynamic variable. If your Solder Paste Inspection (SPI) reports a volumetric standard deviation greater than sigma = 0.05 on a 0.3mm BGA footprint, your line is already trending toward failure."

Our engineering teams apply specific, field-tested rules to stabilize high-precision lines:

• Custom Stencil Nano-Coating Geometry: For fine-pitch components, we use electroformed nickel stencils (100 microns thick) treated with a hydrophobic nano-coating. We dictate an area ratio constraint of > 0.66 for all micro-apertures. This guarantees a paste transfer efficiency of 95% to 98%, preventing insufficient solder defects before the board ever reaches the pick-and-place system.

• Dynamic Coplanarity Compensation: Our placement systems utilize high-resolution optical alignment cameras that scan each component in real-time. If the coplanarity deviation of a large BGA package exceeds 0.08mm, the machine automatically halts placement for that specific part, avoiding the formation of open circuits or "head-in-pillow" (HiP) defects during reflow.

Frequently Asked Questions (FAQ)

High-Precision Assembly Metrics Comparison

1. Why is solder paste volume tolerance more critical on a 24-layer board than an 8-layer board?

A 24-layer board has a much higher thermal mass and a more complex internal distribution of copper. This variance causes uneven heating across the board's surface during reflow. If your solder paste volume fluctuates by more than +/-10%, pads with lower paste volumes will reach liquidus temperatures faster than adjacent pads, causing severe thermal imbalances that lead to tombstoning or open joints.

2. How does Shenzhen Hongda prevent "Head-in-Pillow" (HiP) defects on heavy-core PCBA architectures?

We eliminate HiP defects by matching advanced chemistry with precise thermal profiling. We use high-activity, lead-free SAC305 Type 4 or Type 5 paste to counter surface oxidation during long reflow cycles. Additionally, our customized reflow profiles limit the delta-T across the surface of the board to < 3.5°C, preventing components from warping away from the paste deposit while the solder is molten.

3. What role does 3D AXI play in verifying high-precision multilayer assemblies?

Standard visual or 2D X-ray systems cannot isolate individual solder joints in a multilayer stackup, especially when components are mounted back-to-back or over internal heavy copper shields. Our 3D Automated X-ray Inspection (AXI) captures slice-by-slice tomographic views of each solder joint. This allows us to calculate exact void percentages, check barrel-fill in plated through-holes (PTH), and find hidden micro-bridging underneath 0.3mm pitch packages.

4. How does substrate material selection affect the high-precision assembly process?

High-precision assembly requires high-Tg (> 170°C) and low-CTE materials. If a board uses standard FR4 materials under lead-free assembly temperatures (up to 250°C), the substrate will expand rapidly along the Z-axis. This expansion strains plated microvias and deforms fine-pitch SMD pads, resulting in micro-cracks that cause intermittent failures once the device is deployed in the field.

5. Why is nitrogen (N2) reflow mandatory for 2026 high-precision assemblies at your facility?

We use nitrogen purging to keep oxygen levels strictly below 50 ppm inside our reflow ovens. At this level, the oxidation of exposed copper pads and solder alloys is completely suppressed. This lowering of surface tension improves solder wetting and allows the paste to flow smoothly over pads, which is vital for achieving clean, predictable joints on fine-pitch components without running into thermal profile constraints.
